2014 XBM Iron Sand Processing Plant

Iron Sand Processing Plantfor wet magnetic separation of materials such as magnetite, pyrrhotite, roasted ore,Ti

gravity separation examples, gravity separator, magnetic seperator,magnetic separation chemistry

Iron Sand Processing Plant is applicable for wet magnetic separation of materials such as magnetite, pyrrhotite, roasted ore and ilmenite whose size is less than 3 mm and also used for iron removal operation of materials such as coal, nonmetalliferous ore and construction material and so on.
Iron Sand Processing Plant Characteristics:

Magnetic system of Iron Sand Processing Plant adopts high quality ferrite material or is compounded with rare earth and magnetic steel. Average magnetic intensity on the surface of cylinder is 100~600 mT. According to the user’s need, magnetic system with many different kinds of surface intensity such as fair current, half reverse flow and counter flow can be provided. This magnetic separator has the charateristics of single structure, large capacity, easy operation and maintenance.
magnetic separator
Iron Sand Processing PlantWorking Principle:
The mineral slurry flows into the cell through box feeder, the mineral particle is loose under the function of water flow of feeder water pipe when they flow into the cell. Affected by magnetic field, the magnetic particle swarm together and form magnetic cluster or chain. With the magnetism of mineral slurry, the magnetic cluster or chain moves toward the magnetic pole, and is absorbed to the cylinder. Because of the polarity of magnetic pole, the revolving directions alternate constantly, and remain fixed when it is working. When the magnetic cluster and chain go round and round along with the cylinder, the mingled gangue and other non-magnetic ore fall down due to the mixing phenomena produced by alternation of magnetic poles, and it is concentrate that is absorbed to the cylinder surface. The concentrate moves to the end of magnetic system where the magnetism is weakest along with the revolving cylinder, and is discharged into concentrate tank by the current ejected by the discharging-ore pipe. The non-magnetic or weak magnetic remained are discharged along with the mineral slurry, and they are gangue.

      Henan Xingbang Heavy Machinery Co., Ltd. is a world leader in the manufacture and distribution of crushing, grinding, screening, washing and recycling, beneficiation, crusher parts and so on, as well as sand stone aggregate production line used in quarry, mining and cement plant.

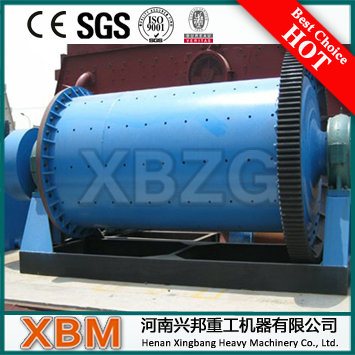

Main products:ball mill,rotary dryer,rotary kiln,flotation cell machine,magnetic separator,spiral chute,spiral classifier, shaking table, vibrating screen,jaw crusher,ect.
